Piling Templates and Pile Gripper Frame

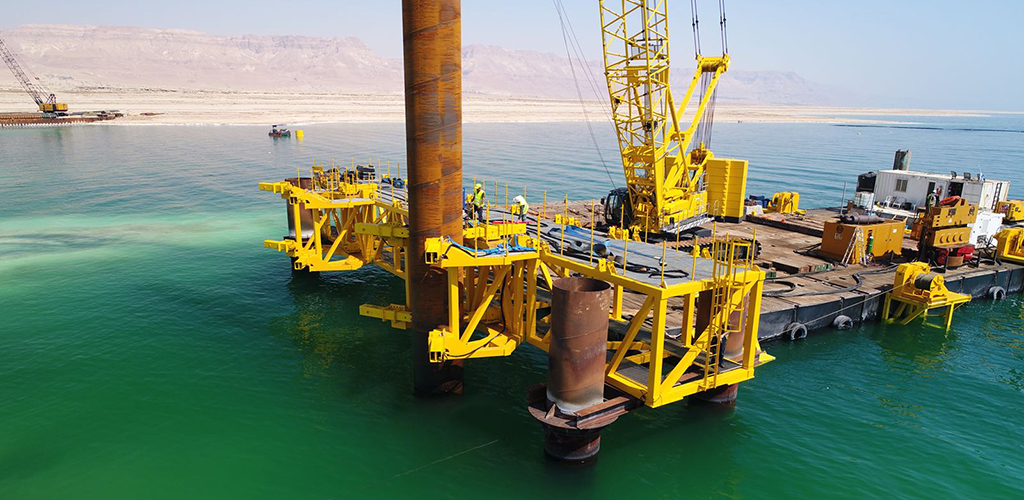

TMS designed and supplied several piling templates/ pile gripper frames for offshore piling. These piling templates are suitable for pile diameters varying from 0,5 up to 17 meter and pile weights over 1000 ton. TMS piling templates can be used on a.o. heavy lift vessels, barges and jack up vessels.

There are different types of piling templates/ pile gripper frames:

  • Pile gripper frames for leader masts
  • Mobile pile gripper frames for auxiliary bridges for construction of jetties
  • Pile gripper frames for crane vessels/ pontoons
  • Pile gripper frames for jack-ups
  • Pile gripper frames for heavy lift vessels
  • Cell templates
